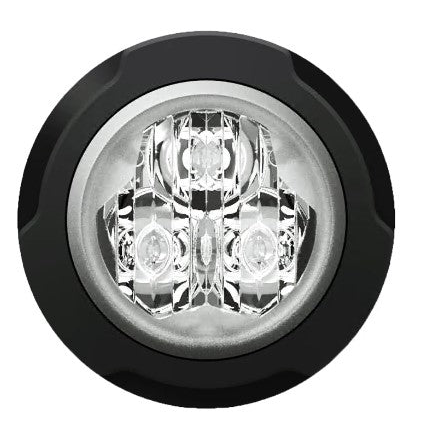

Flush Mount 4 LED Strobe

  • €60.00


Features:

  • Small profile with powerful ECE R65 certified output.
  • ECE R10 EMC Compliance.
  • All-in-one self-contained for easy and versatile installation without external flasher.
  • Long life LEDs technology rated to 100,000 hours of operation.
  • Non-volatile memory recalls last flash pattern used at power up.
  • Multi-units synchronization in simultaneous or alternating flash.
  • Reverse polarity protection.
  • Fully weatherproof and vibration resistant design for internal or external use.
  • Aluminum base for efficient heat dissipation and maximum durability.

Specifications:

  • Meets: ECE R65 (XA1, XB1, XR1), ECE R10, SAE J595 & J845 Class 1, IPX7
  • LED: High-power LED x 3pcs
  • Warning Patterns: 16 Flash Patterns
  • Operating Voltage: 12~24VDC
  • Avg. Current: 0.39A@12VDC / 0.19A@24VDC
  • Avg. Power: 4.62W (varies with flash pattern
  • Max. Current: 0.77A@12VDC / 0.39A@24VDC
  • Max. Power: 9.24W
  • Wires: Red-Vcc : 20cm (24AWG) / Black-GND : 20cm (24AWG) / Yellow-Flash Patterns & Sync : 20cm (24AWG)
  • Fuse Recommended: 1A
  • Multi-Unit Synchronization: Over 15 units
  • Available in: RED, AMBER, WHITE
