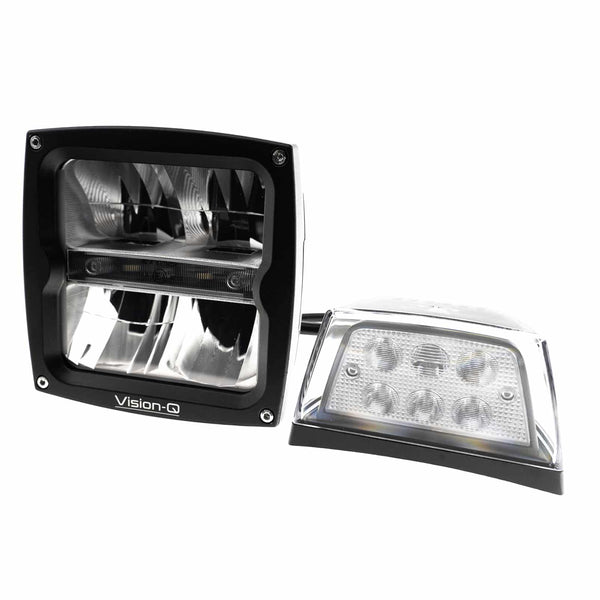

Universal LED Headlight unit 9-32V 30W set
This robust headlight set can be used universally on various vehicles mostly Loaders. With the added advantage that it is a headlamp with turn signal in one!
GENERAL CHARACTERISTICS:
- Set: 1 x left headlight unit and 1 x right headlight unit
- Functions: Low beam, high beam, parking light and turn signal
- Connection: including 6-pole cable, 2 meters. Deutsch DT 6 pin connector (supplied separately)
- Type: Universal
- Lifespan: +30,000 hours
- IP rating: IP67 dust and immersion proof
- EMC Radio Suppressed: CISPR Class 4
- With E-marking: R112, R10, R7, R6
TECHNICAL FEATURES:
- Low beam light intensity: 1120 Lumen
- High beam light intensity: 1510 Lumen
- City light intensity: 112 Lumen
- Turn signal light intensity: 231 Lumen
ELECTRICAL CHARACTERISTICS:
- Low beam wattage: 18W
- Wattage high beam: 30W
- City light wattage: 4W
- Wattage turn signal: 5W
- Voltage: 9-32V
DIMENSIONS IN MM:
- Width: 244.8mm
- Height: 111.4mm
- Depth: 118.8mm
COLOR SCHEME WIRES:
- Brown wire: Positive turn signal
- Gray wire: Negative turn signal
- Red wire: Positive high beam
- White wire: Positive low beam
- Black wire: Negative headlight
- Yellow wire: Positive side light
